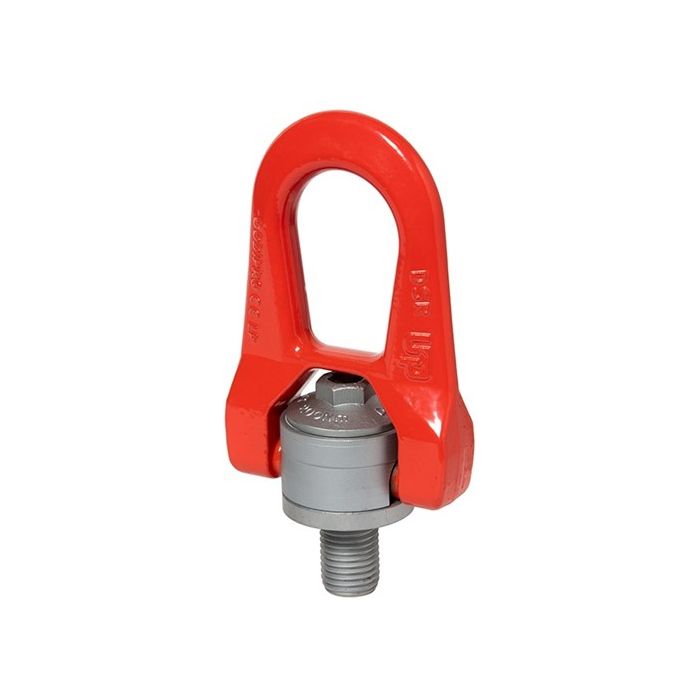

Swivel lifting point from Codipro
De DSR-U van het merk Codipro. The lifting point with the bolt can be 180° tilt but also 360° swivel around its own axis. The product has been specially designed for lifting rotating loads
The lifting point DSR-U is made of gradup steel, a guarantee of the high quality of the material. In order to guarantee the safety of the user, it is subject to a series of very strict checks
This lifting point has a UNC (Unified National Coarse) thread. What is a UNC thread? This is a thread which is defined as coarse which refers to the density of the thread itself. The thread is stated in inch sizes.
It has a safety coefficient of 4 and 5, which means that the breaking load is 4 or 5 times higher than the WLL (Working Load Limit). Thanks to the safety coefficient 5, it can be used worldwide without any restrictions.
The rotatable lifting eyes from CODIPRO meet the «Machine Directive». They meet the strictest standards, including EN1677-1 and are manufactured according to an ISO 9001 certified process.
Machine-style eye bolts are the most popular eye bolts that we sell. They are designed to be screwed into a pre-drilled hole, although some of our customers choose to attach them through a drilled hole and place a nut on the end of the threaded bolt.
- Type: DSR-U
- Thread: UNC
- Brand: Codipro
- Material: Gradup
- WLL: 5.250 kg

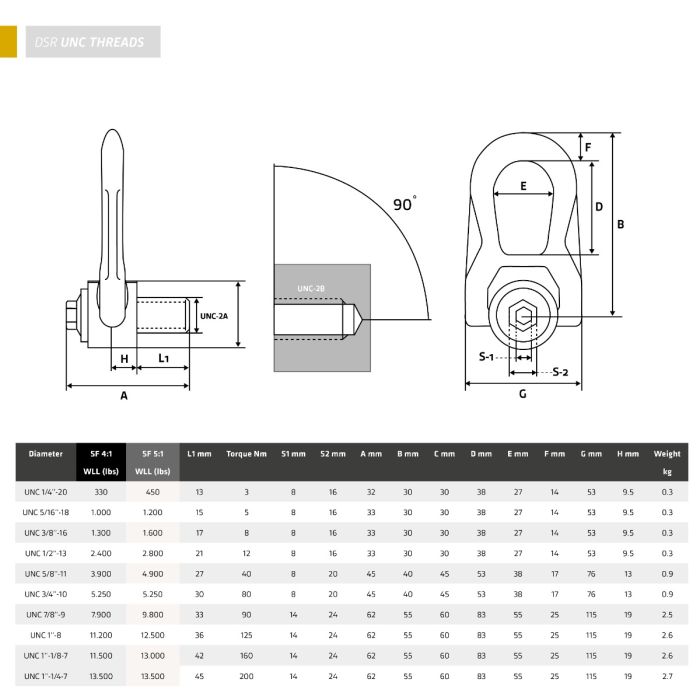

- Size: UNC 3/4″
- Safetyfactor: 4:1 / 5:1
- Norm: NEN-EN 818-1 — EN1677-1
